6 Antennas Dual Band Router WiFi for INTEL / Asus / 2006

 MY RESPONSIBILITY
See the images below:

  • Idea generation in a group
  • Sketching
  • 3D modelling
  • Model making supervision

DESCRIPTION

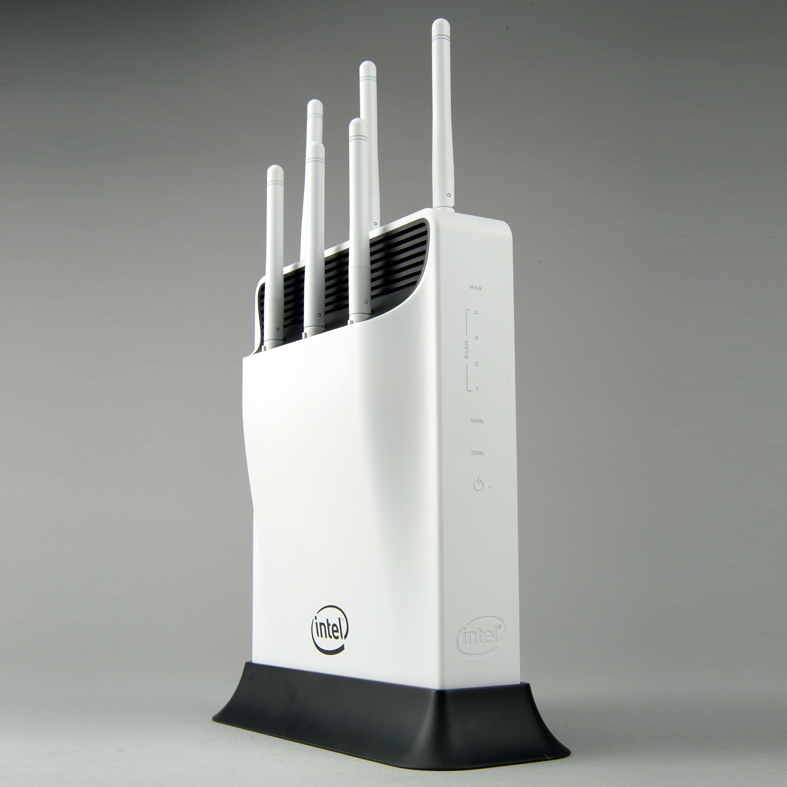

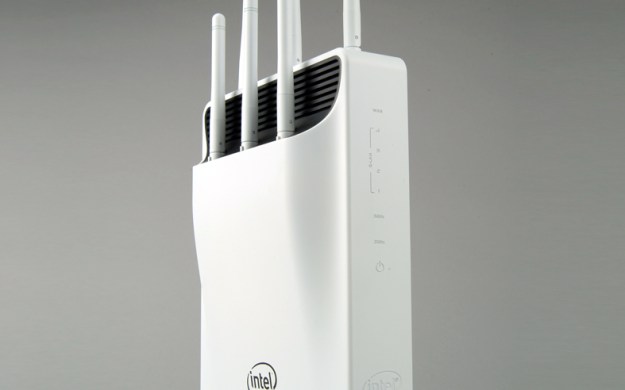

I was requested to design a six antennas broad band case for a ODM customer INTEL.
The time schedule was very tight, one week for the whole process plus additional time for model making.

TEAM WORK:
In the idea generation stage of this project I was assigned to work with a young Columbian designer:
Andres Oyaga-Loew.

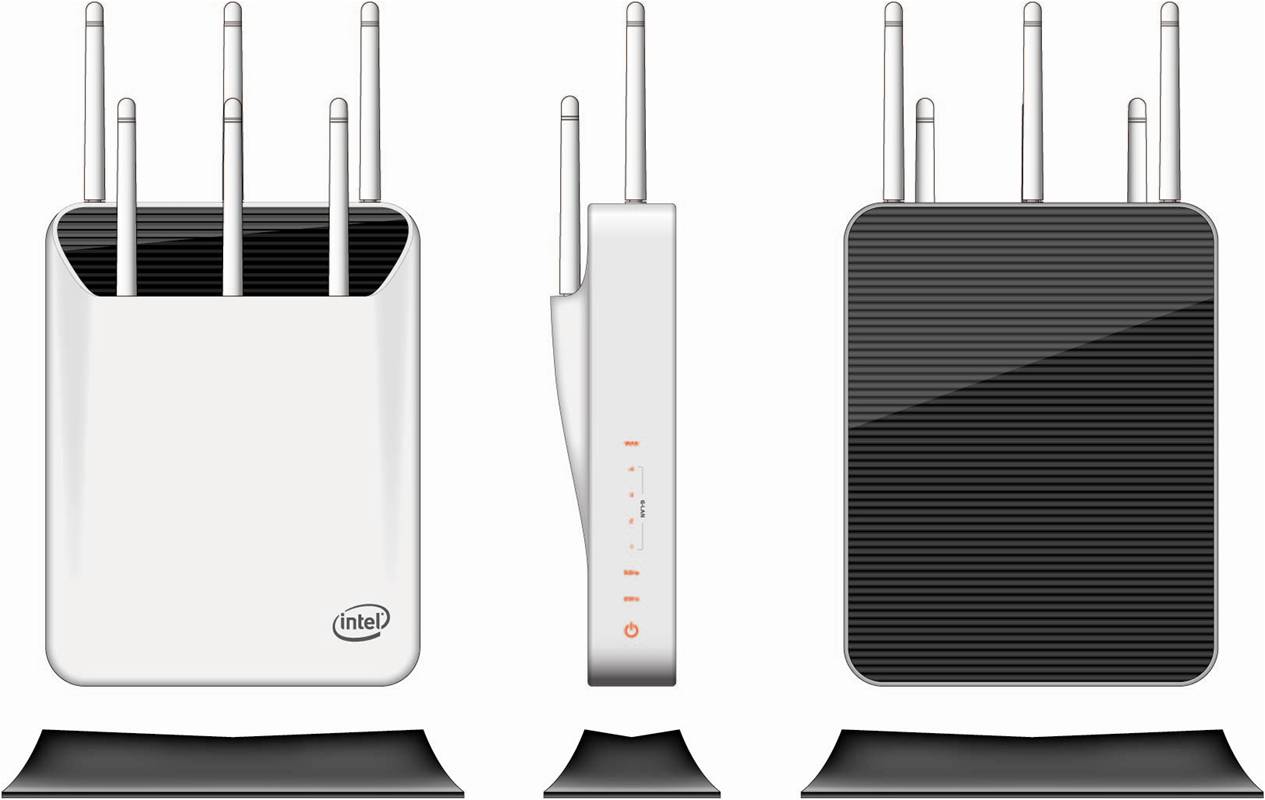

2D

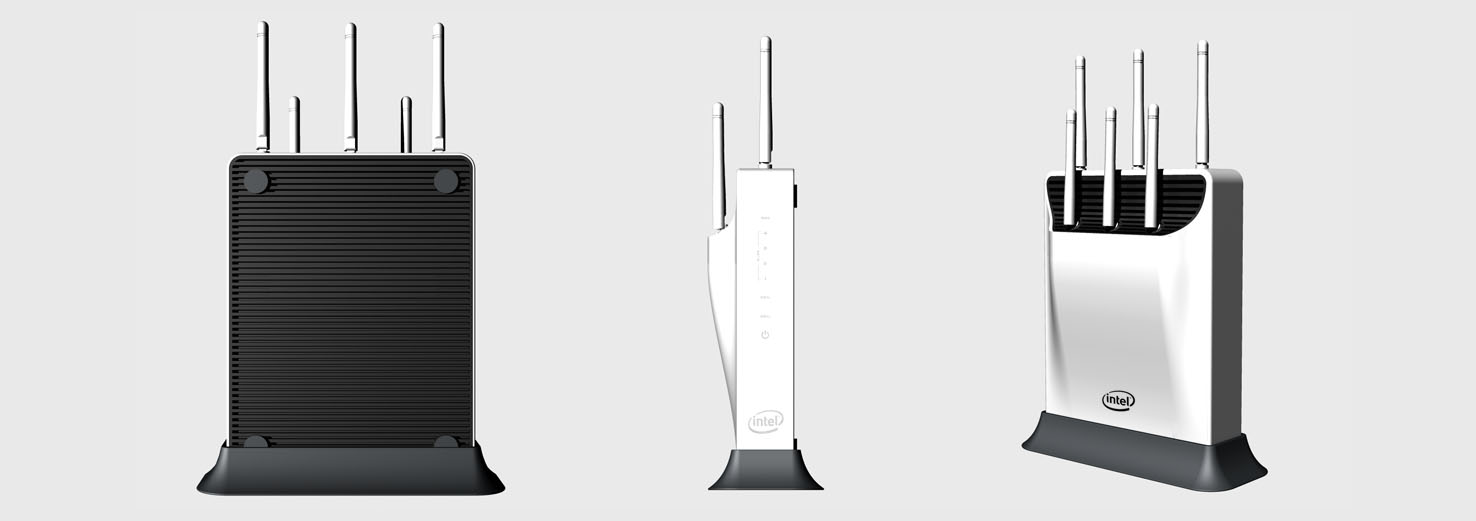

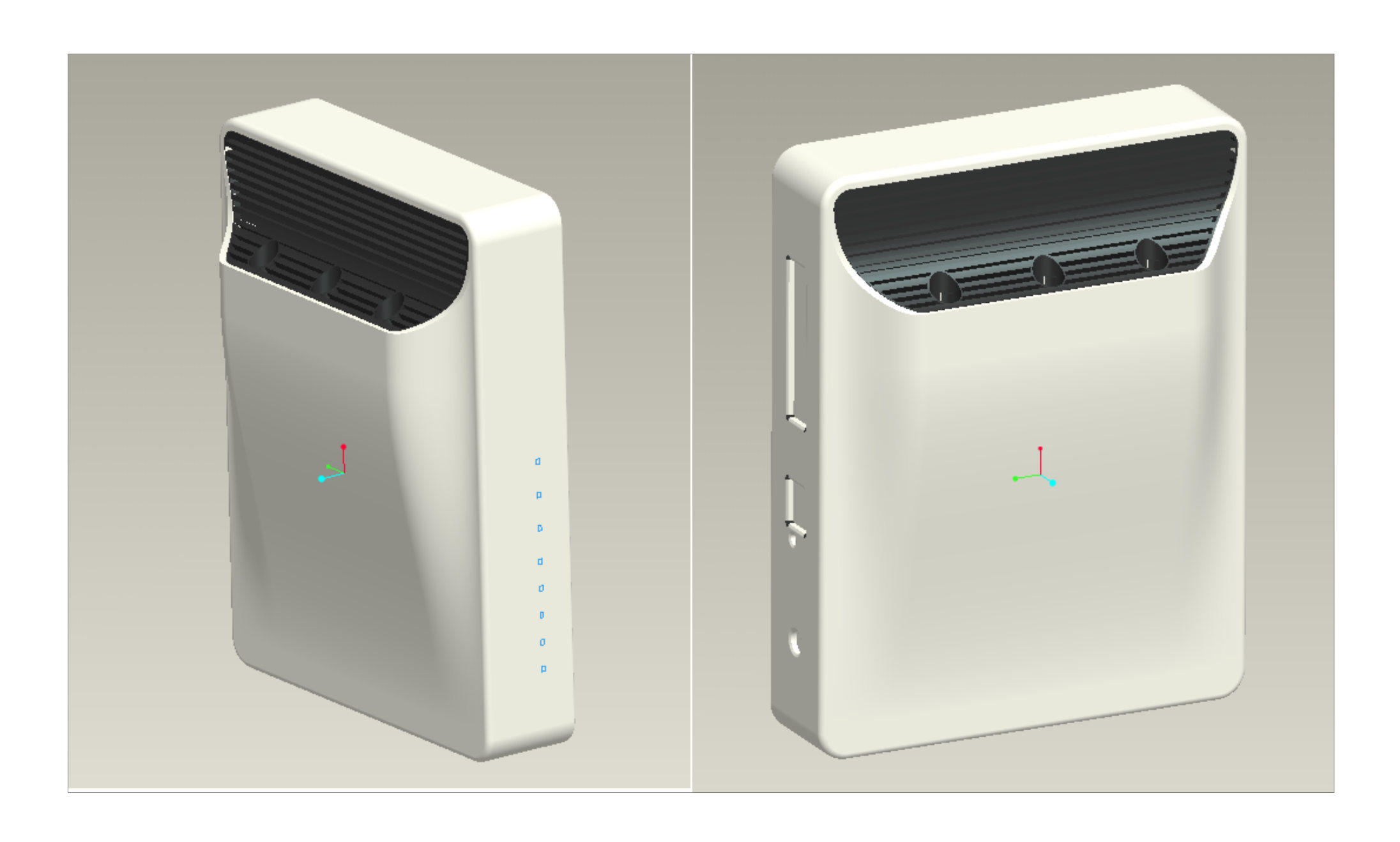

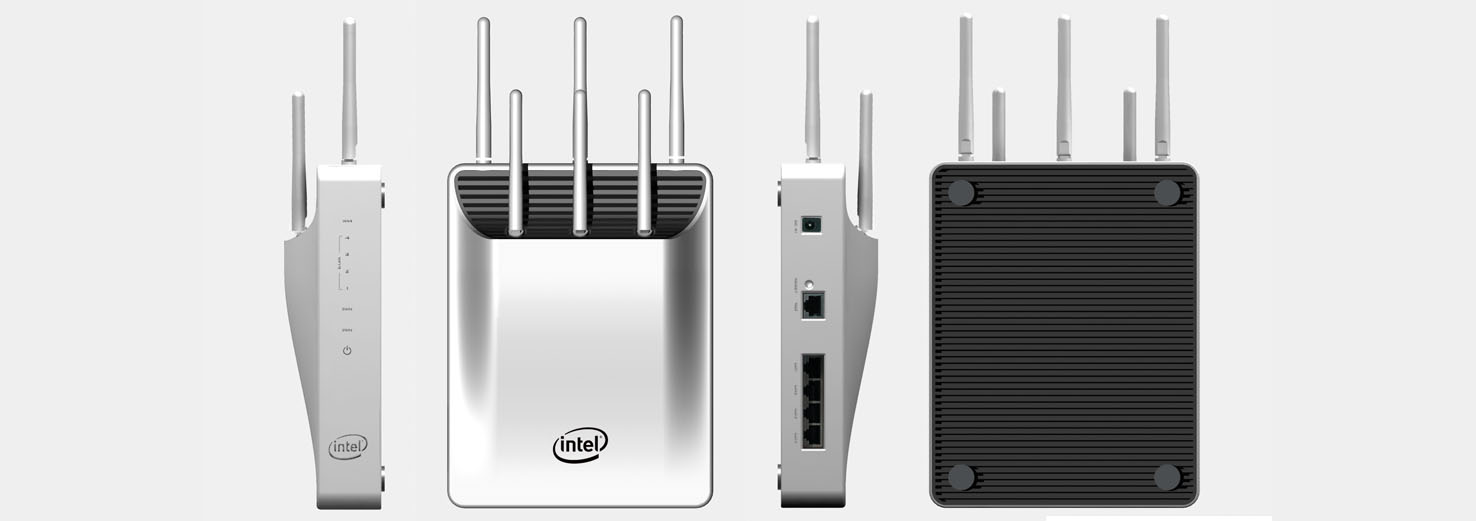

3D

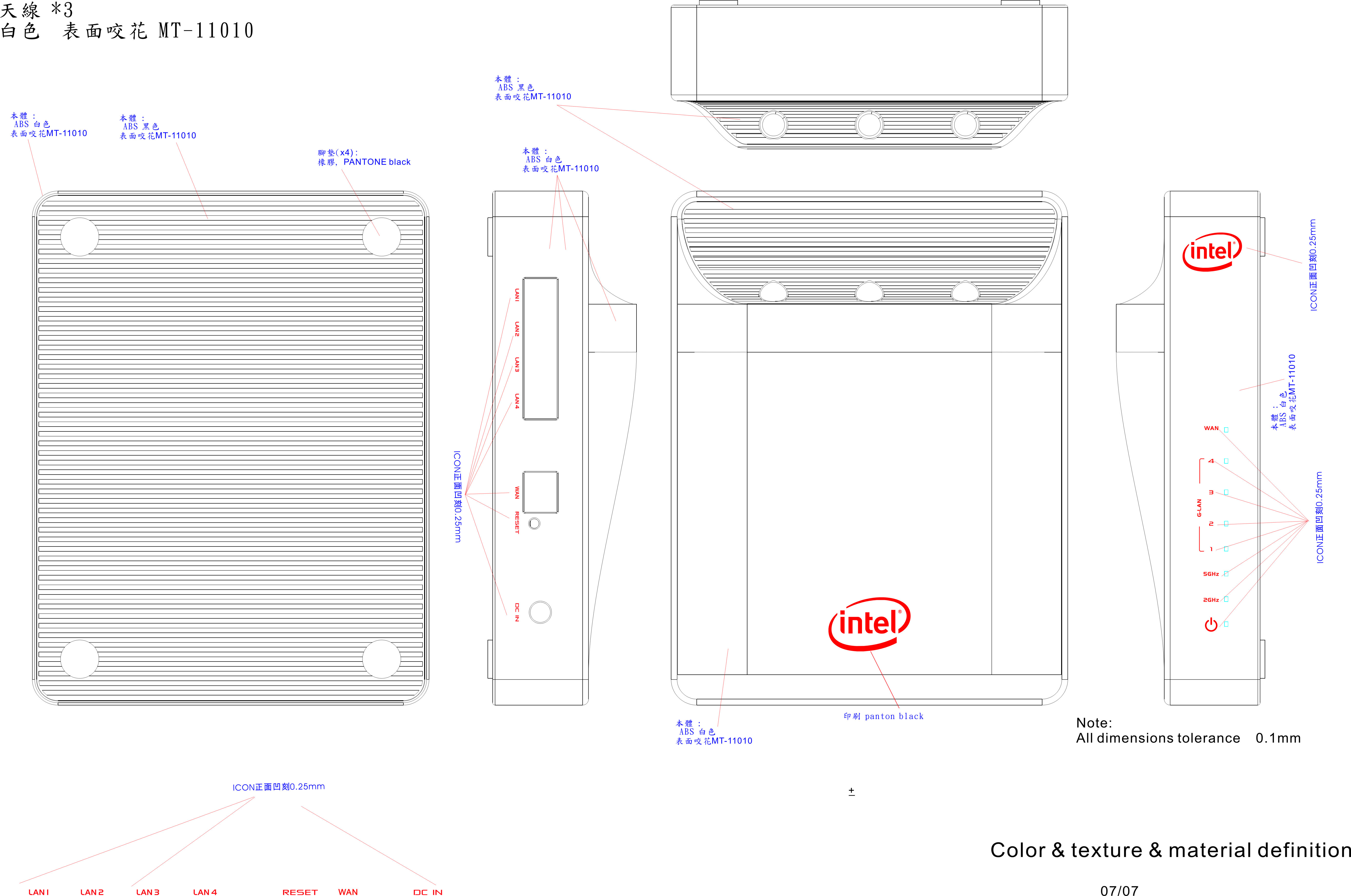

Color specification
